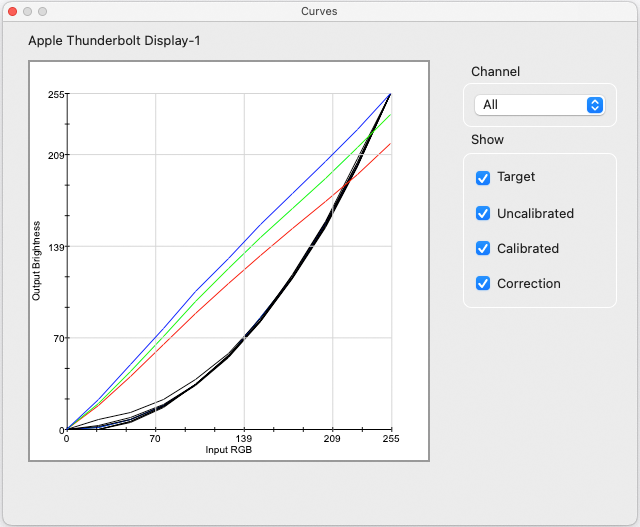

Curves

The Curves Tool offers you a comparison between the different tone response parameters of your display in the form of a graphical curves.

Channels

Choose whether you want to compare the curves with all primary color channels or only with a specific one (Red, Green or Blue).

Target

This is the target curve for each Spyder X2 calibration.

Calibrated

This is the result of the calibration. Comparing it to the target, you can see how close your display hardware gets to the perfect result.

Uncalibrated

The curve of the Uncalibrated state of your display will show you the deviation of colors without calibration.

Correction

This will show you how much each color channel has been corrected to calibrate your display. Without correction these graphs would be a straight diagonal line.
