SpyderTune - in SpyderPro only

Only use SpyderTune if absolutely necessary!

- It will change the display calibration of your SpyderPro and is intended to be a compromise to match screens whose technological differences make it difficult to achieve an alignment.

- When done properly, a StudioMatch calibration will match multiple displays.
- If you are using multiple displays and they work with different backlight technologies and different panels, it can be complicated to match them together. That's where the SpyderTune function of SpyderPro software comes in.

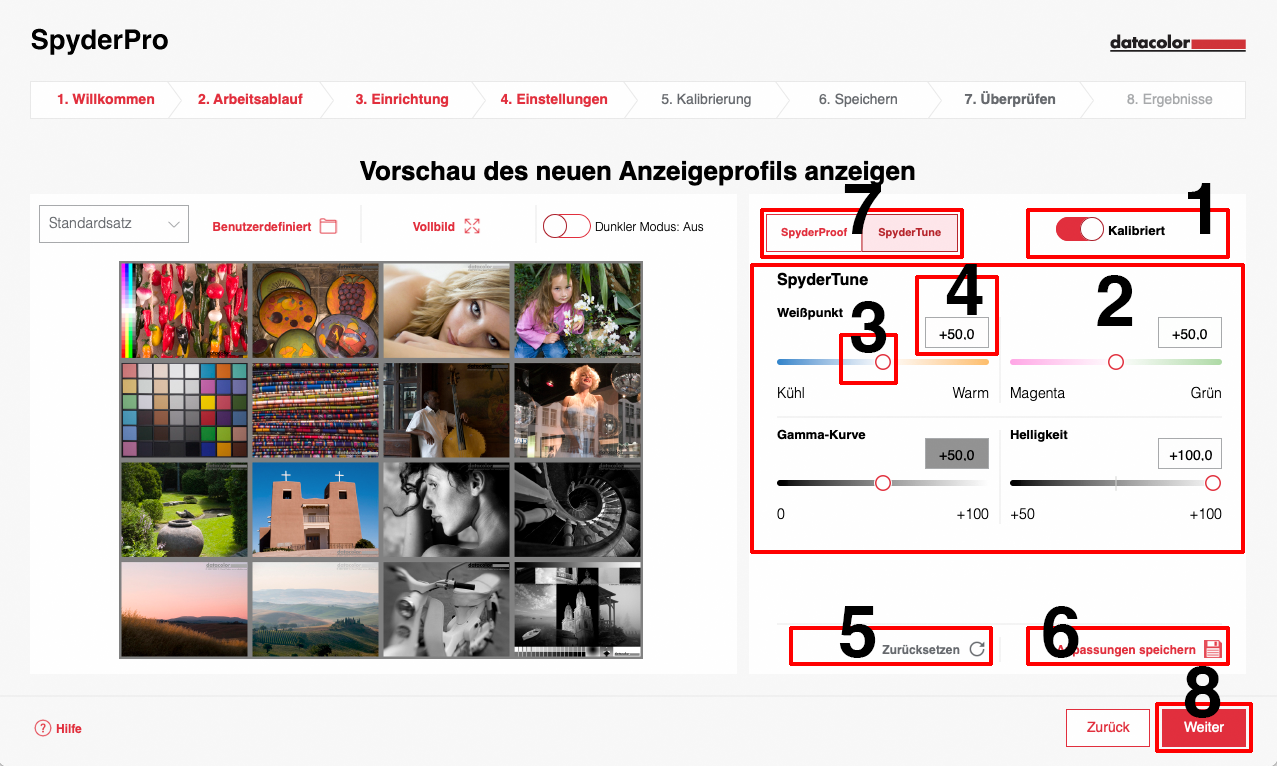

1. Change View

   - You can change between the Calibrated and the Un-calibrated view by clicking the switch.


2. Sliders

   - Change the following aspects of the current calibration:

   - White Point from Cool to Warm
   - Tint from Magenta to Green.
   - Gamma Intensity (default is 50)
   - Brightness from 50% to 100% (default is 100%).



3. Tune Control – Slider

   - To make adjustments using the sliders:

   - Click and hold the circle on the slider
   - Click on the slider on either side of the circle to move +/- 10
   - To return to default setting, double click anywhere on the slider to reset.


4. Tune Control – Text Entry

   - Use the text entry boxes to enter in a custom value.
   - To return to default setting, double click anywhere on the slider to reset.



5. Reset

   - Click the "Reset" button to reset the sliders to the original state of the SpyderPro calibration.


6. Save Adjustments


   - Click the "Save" button to save your calibration with the new SpyderTune adjustments.



7. Access SpyderProof

   - Click this box to access the SpyderProof menu.



8. Continue to Results…
